Infratech Value Controls Dual On/Off Switch Surface Mount & Gang Box AMP Per Pole
IF144425 + Value Controls Collection by + Infratech On Backorder, Expected to ship within 1 to 2 Business DaysPRODUCT INFO
Product Specifications
Item Code
IF144425
SKU
144425
Brand
Infratech
Collection
Value Controls
Dimension
5.5''W x 3.63''D x 2.25''H
Weight
3
Weatherproof Box
4 1/2 h x 4 1/2 w x 2 1/8 d
SS Plate
4 3/8 h x 4 3/8 w
Weatherproof Cover
5 1/2 h x 5 1/2 w x 1 1/4 d (Tab on covers extends 1/4)
Threaded Knock Out
3/4
Range
120/277 VAC
Recommended not to exceed
208/220 VAC = 3000 Watts Max per Switch
Made In
Product Features
- SINGLE ELEMENT HEATERS - Designed for use with all single element heaters.
- LOW COST - Low cost control option for all single element heaters.
- MUST HAVE - Each heater must have its own On/Off Switch.
- VAC RANGE - Range 120/277 VAC (20 amps max per switch).
MORE DOCUMENTS
ADDITIONAL FEATURES
Custom Controls for Outdoor Heaters

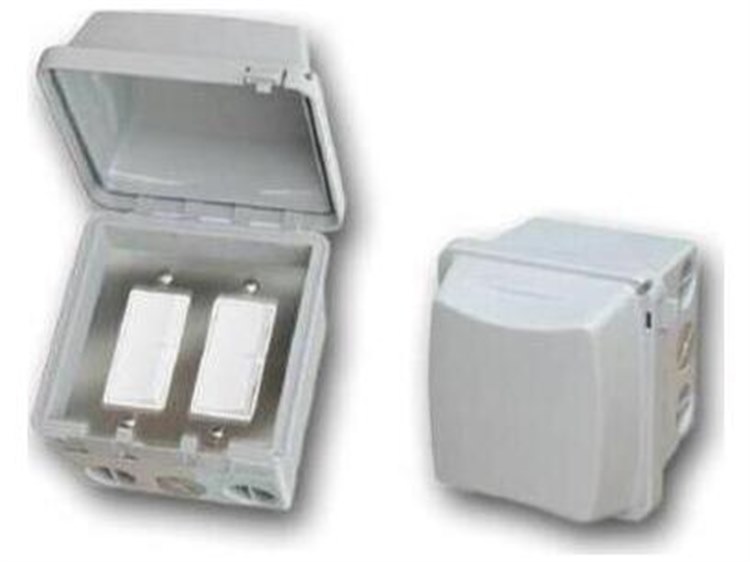

This switch box comes with a weatherproof box and sturdy hinge cover, that encases the gang box; so it can be installed outdoors and will resist the elements. The model 14-4425 switch is a perfect choice if you can't install the heater control switch in-wall.MORE MISCELLANEOUS ITEMS
